Waveshare ESP32-S3 Development Board, With 1.28inch Touch LCD, Compact Size, Accelerometer And Gyroscope Sensor, Display, With CNC Metal Case, Suitable For Various Smart Devices Development

Marka: Waveshare
Szybkość CPU: 240 MHz
Technologia łączności: USB

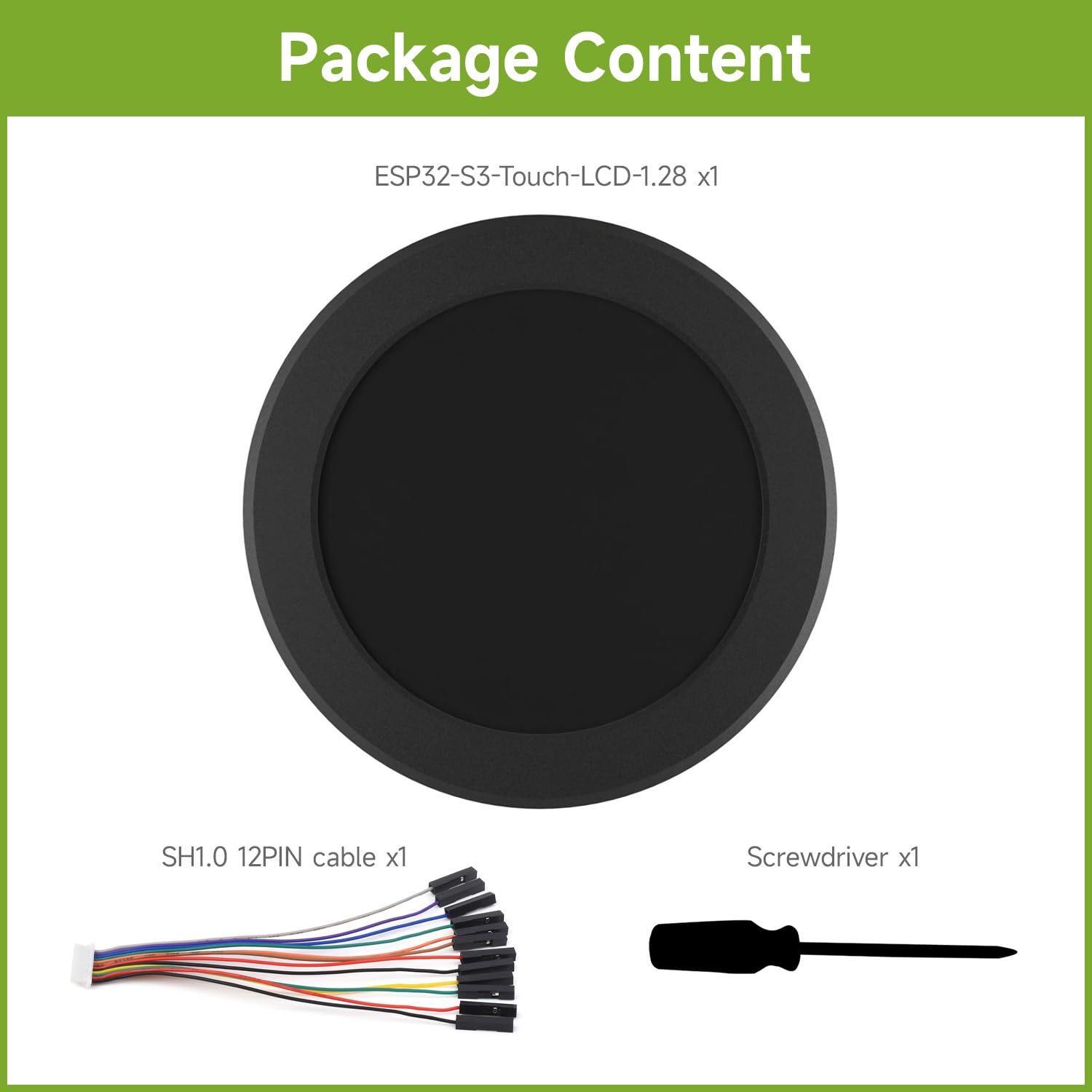

Dołączone komponenty: 1,28" dotykowy LCD, metalowa obudowa CNC, akrylowa płyta dolna, menedżer ładowania baterii litowo-jonowej, czujnik 6-osiowy (akcelerometr 3-osiowy i żyroskop 3-osiowy)Pokaż więcej
Standard komunikacji bezprzewodowej: 802.11n
Zgodne urządzenia: Kamera, Komputer stacjonarny, Smartfon
Liczba jednostek: 1 Count

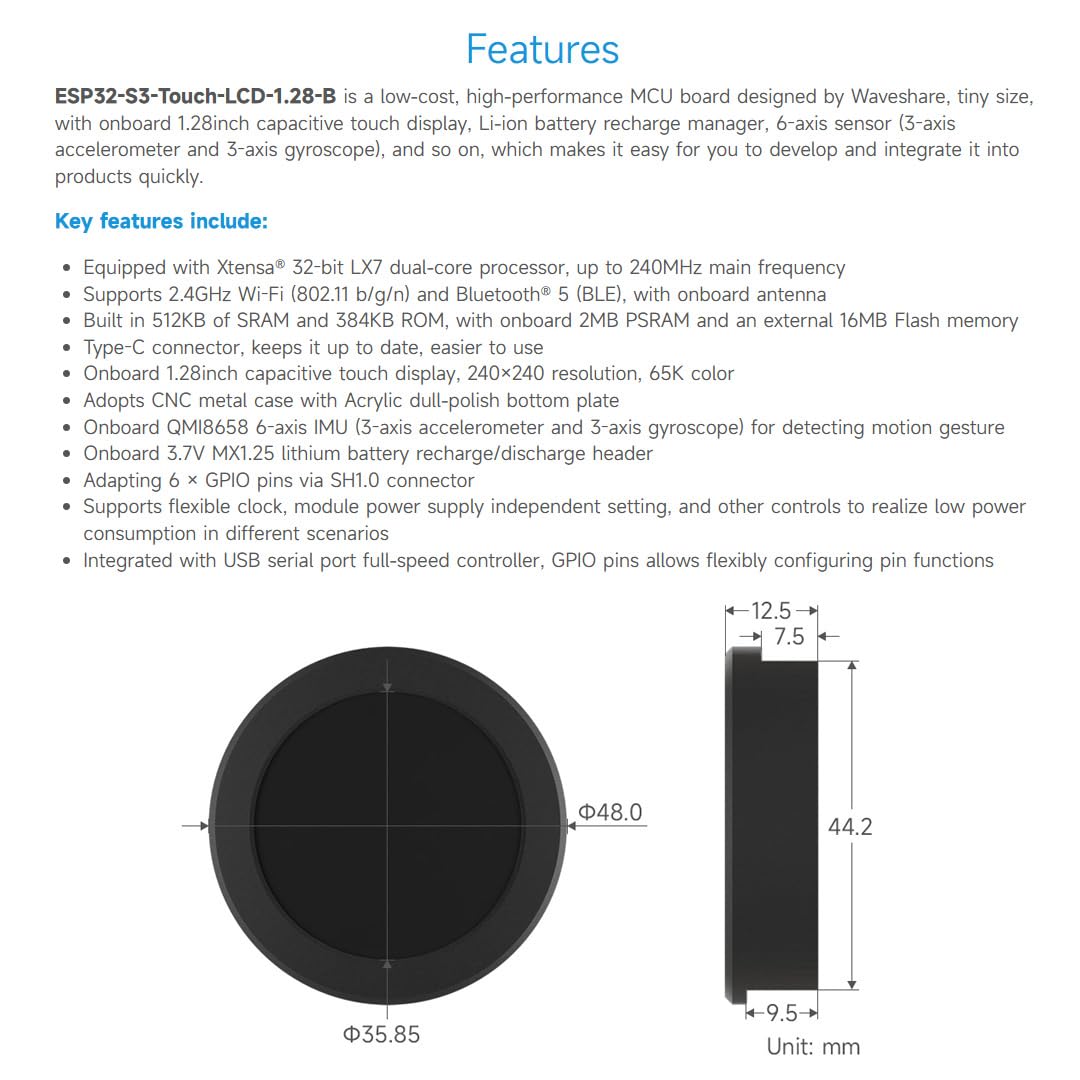

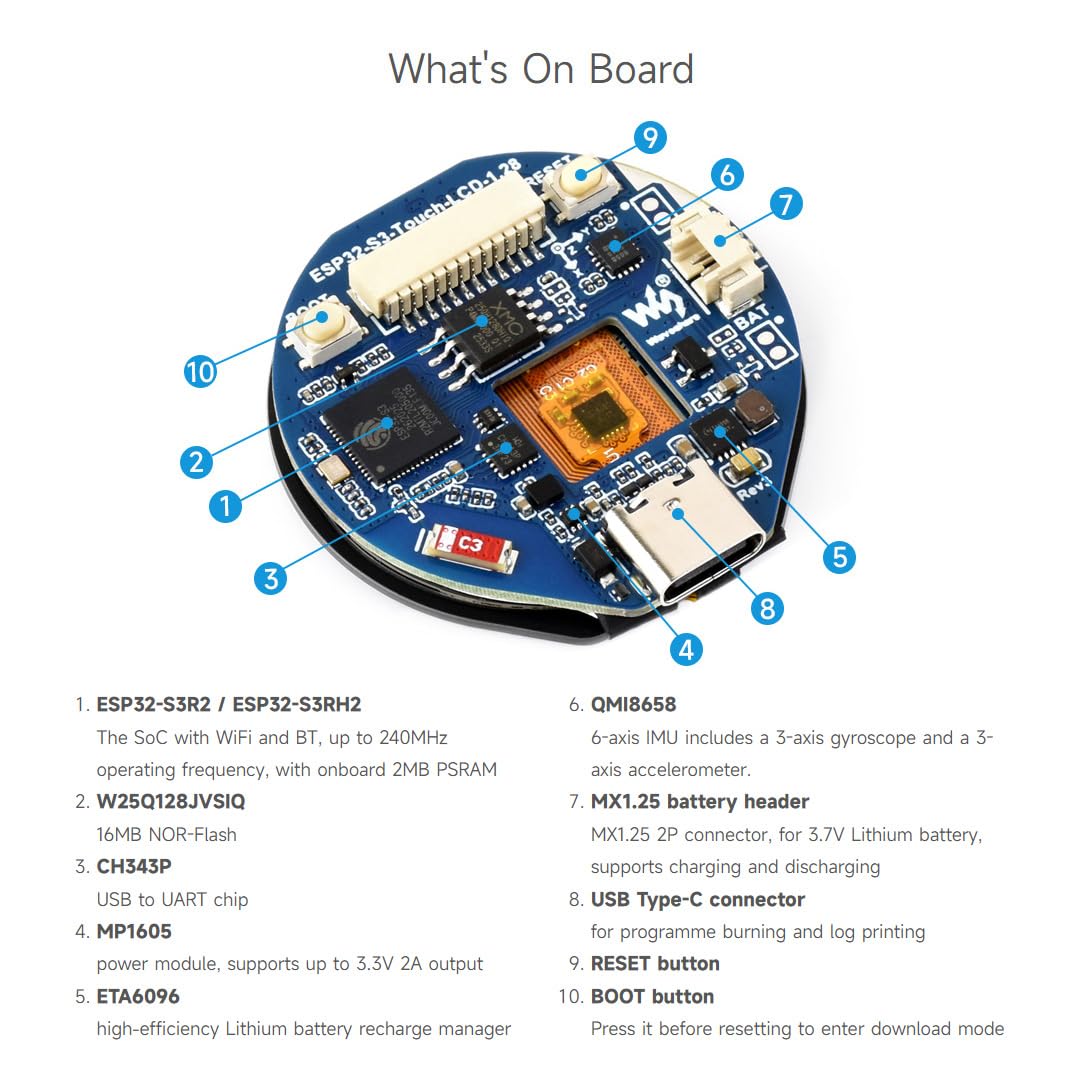

- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT5 (BLE), with onboard antenna

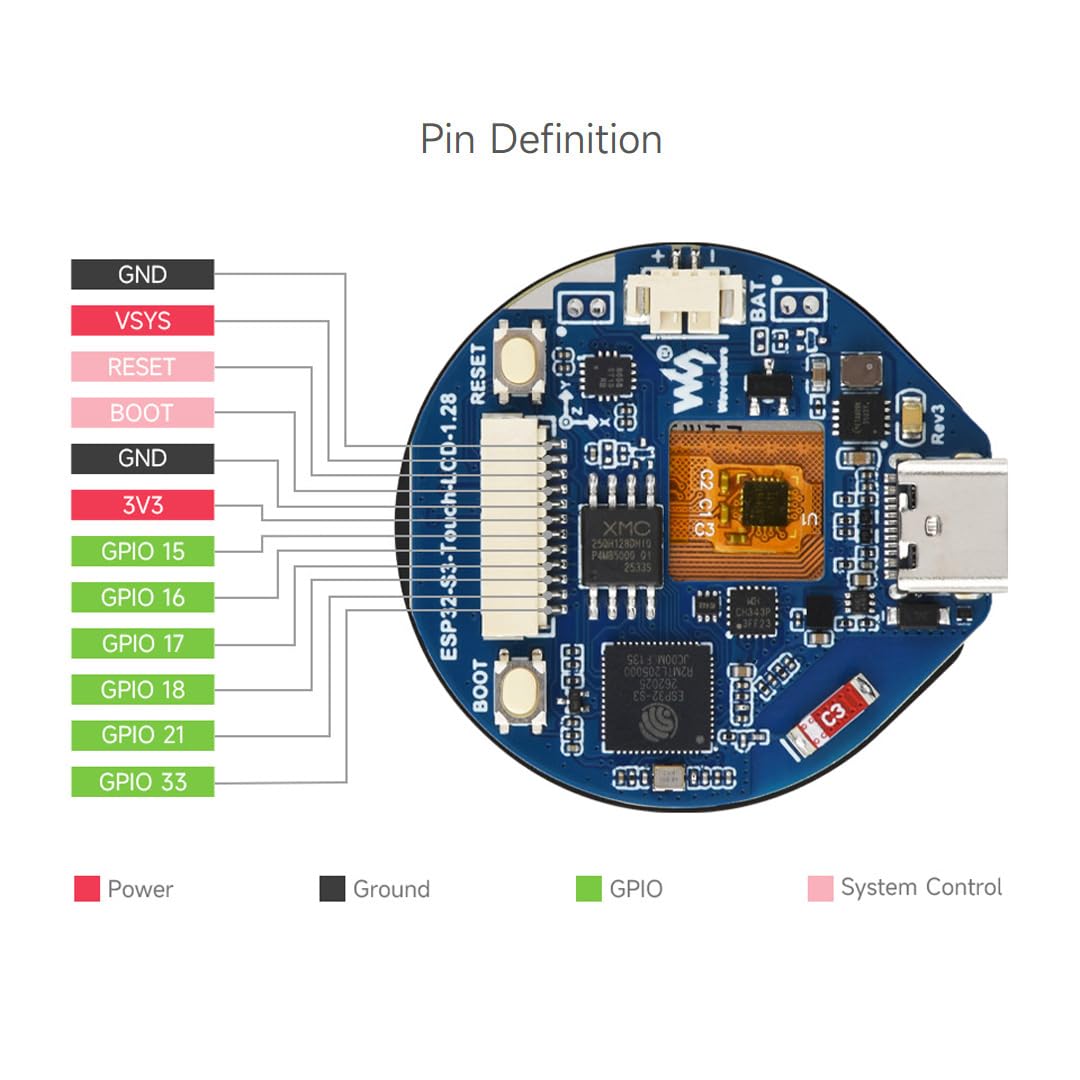

- Built in 512KB of S-RAM and 384KB ROM, with onboard 2MB PS-RAM and an external 16MB Flash memory. Onboard 3.7V Li batt recharge/discharge header and 6 脳 GPIO pins via SH1.0 connector

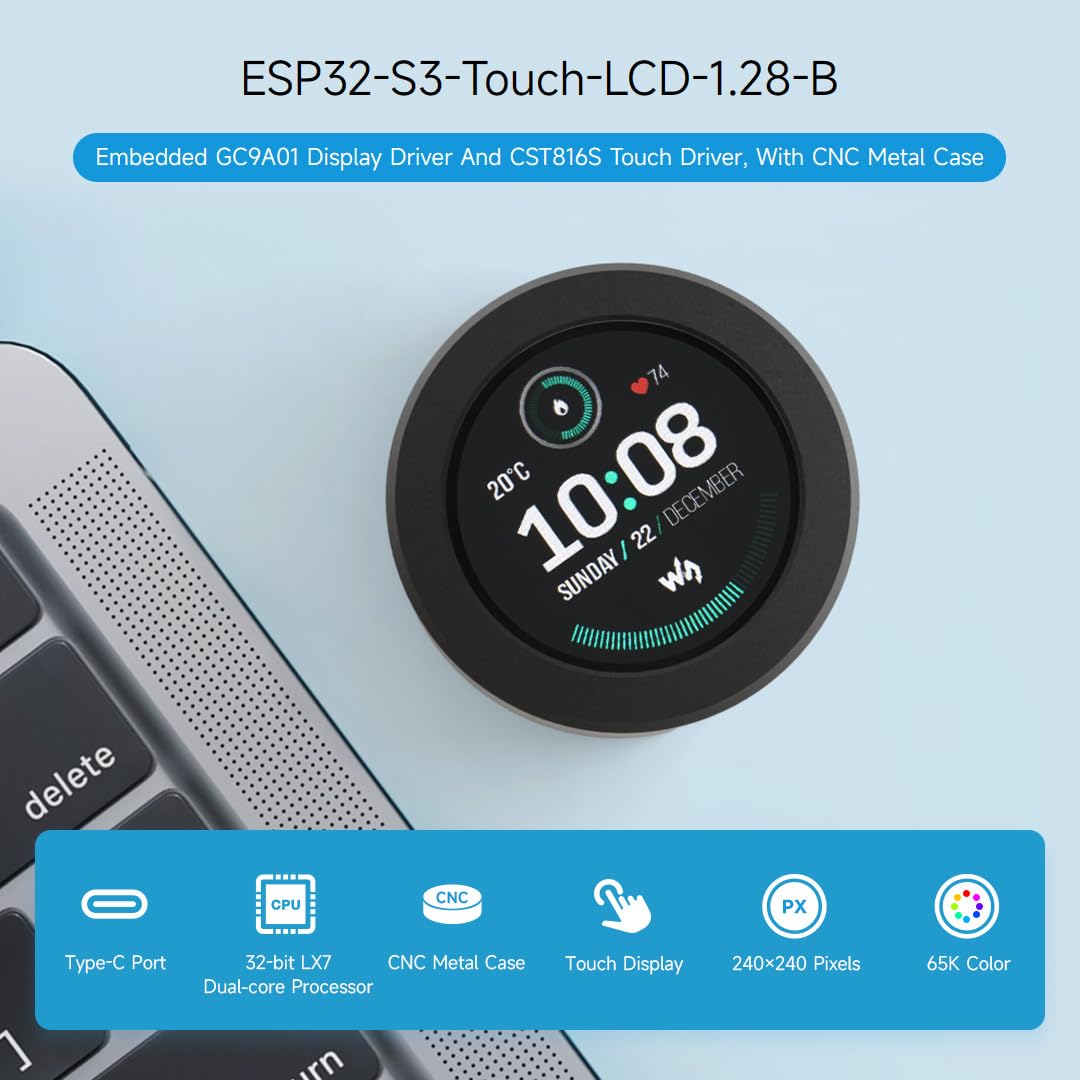

- Type-C connector, keeps it up to date, easier to use. Onboard 1.28inch capacitive touch display, 240x240 resolution, 65K color

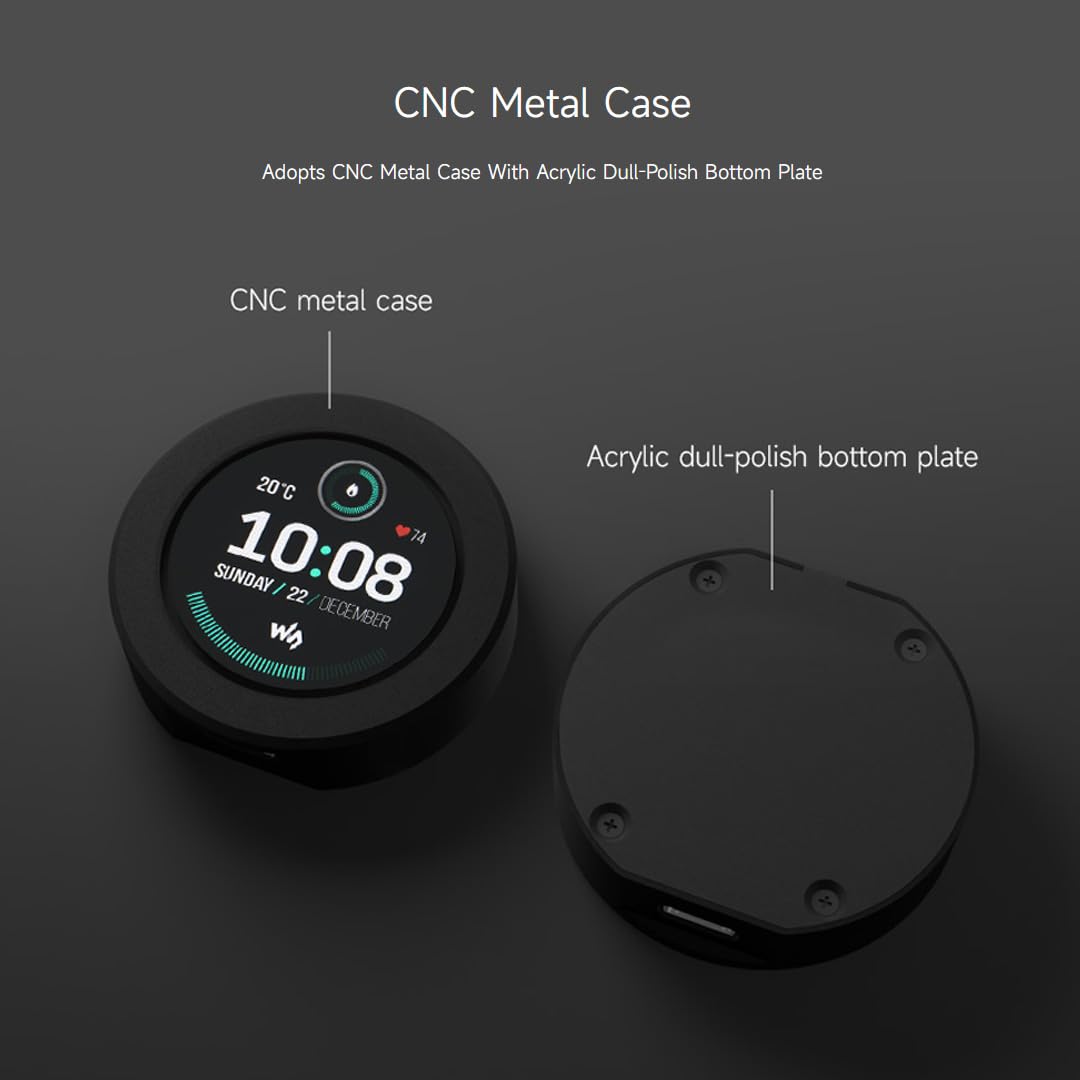

- Adopts CNC metal case with Acrylic dull-polish bottom plate. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios. Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
